Build an editable PowerPoint service brief from PowerShell

PowerPoint automation gets painful when every slide is a coordinate exercise. You can create slides that way, but consistent decks require a lot of layout knowledge in the script.

The newer OfficeIMO PowerPoint designer APIs move the problem up a level: describe the deck semantically, then let the engine choose layouts and render a complete editable .pptx. PSWriteOffice exposes that designer layer to PowerShell, so a script can build decks from objects without turning every slide into a design math project.

This showcase uses a technical delivery story about building the PSWriteOffice examples. It turns delivery steps, responsibilities, sample metrics, and next actions into slides that can be presented, edited, imported into another deck, or used as a starting template. The Coverage and Polish values are fictional chart data, not measured product scores or a current roadmap. Replace those objects with service-health data to build a briefing alongside the Word and Excel reports.

/>

Before you start

Use PowerShell 7 and install the public module versions used for this article:

Install-Module PSWriteOffice -RequiredVersion 3.0.7 -Scope CurrentUser
Import-Module PSWriteOffice -RequiredVersion 3.0.7

Run examples from a working folder where you can write the generated files. Supply your own inputs wherever a later example references an existing file or service.

What The Example Builds

The full showcase script lives in the PSWriteOffice repository. Run the following blocks in order to build the eight-slide example.

It creates a service brief deck with:

• 16:9 slide size
• branded accent color
• OfficeIMO designer deck-plan rendering
• section slide
• process slide
• card-grid slide
• coverage/map-like slide
• capability slide
• case-study slide
• explicit chart slide
• explicit table slide
• speaker notes
• named sections
• slide transitions
• structural slide read-back

The point is not only "PowerShell can add a slide." The generated deck stays editable and can serve as a practical starting point for a real briefing.

Deck Plan First

The example begins with business-shaped PowerShell objects: process steps, product cards, coverage areas, capabilities, and metrics.

$process = @(
    [pscustomobject]@{
        Title = 'Compare'
        Description = 'Map PSWriteOffice against OfficeIMO capabilities.'
        AccentColor = '#008C95'
    }
    [pscustomobject]@{
        Title = 'Compose'
        Description = 'Create showcase scripts that generate real artifacts.'
        AccentColor = '#3B82F6'
    }
    [pscustomobject]@{
        Title = 'Publish'
        Description = 'Use screenshots, code, and blogs to explain the output.'
        AccentColor = '#F59E0B'
    }
)

$cards = @(
    [pscustomobject]@{ Title = 'Word'; Items = 'TOC|sections|tables|charts|approvals'; AccentColor = '#2F80ED' }
    [pscustomobject]@{ Title = 'Excel'; Items = 'dashboard|pivots|sparklines|validation|links'; AccentColor = '#219653' }
    [pscustomobject]@{ Title = 'PowerPoint'; Items = 'designer plans|process|cards|coverage|notes'; AccentColor = '#9B51E0' }
    [pscustomobject]@{ Title = 'Blog'; Items = 'screenshots|code|generated covers|artifact links'; AccentColor = '#F2994A' }
)

$coverage = @(
    [pscustomobject]@{ Name = 'Engine'; X = 0.22; Y = 0.42; Detail = 'OfficeIMO owns Open XML behavior.' }
    [pscustomobject]@{ Name = 'PowerShell'; X = 0.48; Y = 0.34; Detail = 'PSWriteOffice owns scripting ergonomics.' }
    [pscustomobject]@{ Name = 'Examples'; X = 0.68; Y = 0.58; Detail = 'Showcase scripts prove the surface.' }
    [pscustomobject]@{ Name = 'Website'; X = 0.82; Y = 0.36; Detail = 'Blog posts turn artifacts into adoption.' }
)

$capabilities = @(
    [pscustomobject]@{ Heading = 'Readable by humans'; Body = 'Outputs should look like business artifacts, not raw exports.'; Items = 'visual hierarchy|navigation|metadata' }
    [pscustomobject]@{ Heading = 'Useful to scripts'; Body = 'Generated files should be inspectable and testable.'; Items = 'summaries|parts|deterministic paths' }
    [pscustomobject]@{ Heading = 'Fast enough to reuse'; Body = 'Examples should avoid desktop Office for generation.'; Items = 'Open XML|small fixtures|single-save flow' }
)

$caseStudy = @(
    [pscustomobject]@{ Heading = 'Problem'; Body = 'Basic examples hide how much OfficeIMO can already produce.' }
    [pscustomobject]@{ Heading = 'Approach'; Body = 'Expose semantic PowerPoint plans and richer Office examples through PSWriteOffice.' }
    [pscustomobject]@{ Heading = 'Outcome'; Body = 'A test-drive deck that remains editable and visually credible.' }
)

$metrics = @(
    [pscustomobject]@{ Value = '3'; Label = 'flagship products' }
    [pscustomobject]@{ Value = '1'; Label = 'shared showcase plan' }
    [pscustomobject]@{ Value = '0'; Label = 'desktop Office dependency' }
)

$chartRows = @(
    [pscustomobject]@{ Product = 'Word'; Coverage = 82; Polish = 72 }
    [pscustomobject]@{ Product = 'Excel'; Coverage = 91; Polish = 83 }
    [pscustomobject]@{ Product = 'PowerPoint'; Coverage = 76; Polish = 68 }
)

$tableRows = @(
    [pscustomobject]@{ Area = 'Designer bridge'; Status = 'Added'; Next = 'Add more variant knobs' }
    [pscustomobject]@{ Area = 'Showcase deck'; Status = 'Added'; Next = 'Export screenshots' }
    [pscustomobject]@{ Area = 'Blog post'; Status = 'Planned'; Next = 'Write after visuals' }
)

$path = '.\PSWriteOffice-Service-Brief.pptx'

Those objects become a semantic deck plan:

$plan = New-OfficePowerPointDeckPlan {
    Add-OfficePowerPointPlanSection `
        -Title 'PSWriteOffice Showcase' `
        -Subtitle 'Beautiful, useful Office artifacts from PowerShell' `
        -Seed 'showcase-cover'

    Add-OfficePowerPointPlanProcess `
        -Title 'From objects to publishable artifacts' `
        -Subtitle 'A repeatable path for examples and blog posts' `
        -Steps $process `
        -Seed 'delivery-process'

    Add-OfficePowerPointPlanCardGrid `
        -Title 'Product surfaces' `
        -Subtitle 'Each product should show a real workflow, not only primitives.' `
        -Cards $cards `
        -Seed 'product-cards'

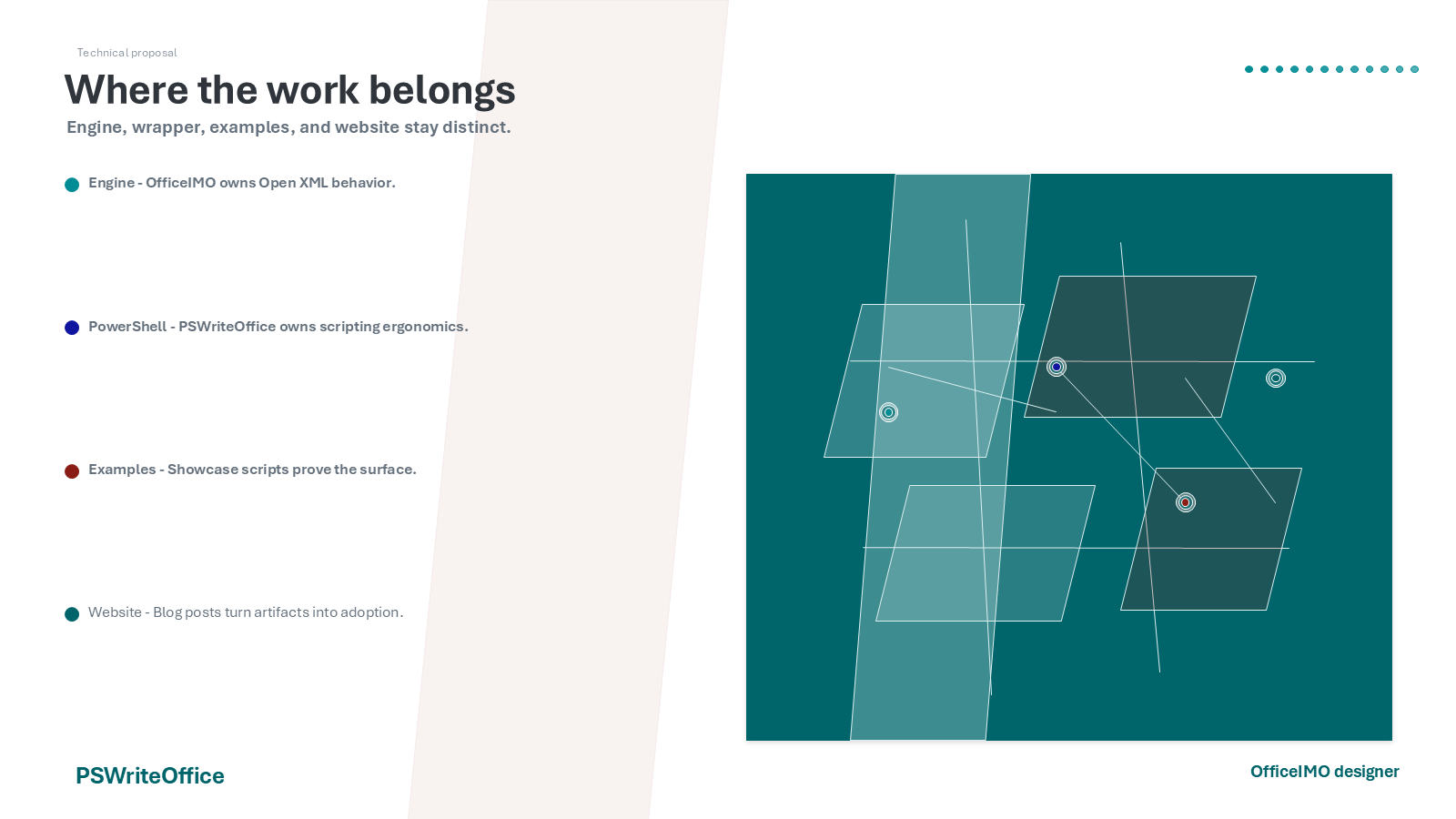

    Add-OfficePowerPointPlanCoverage `
        -Title 'Where the work belongs' `
        -Subtitle 'Engine, wrapper, examples, and website stay distinct.' `
        -Locations $coverage `
        -Seed 'coverage-map'

    Add-OfficePowerPointPlanCapability `
        -Title 'Quality bar' `
        -Subtitle 'The showcase should be practical enough to copy and attractive enough to publish.' `
        -Sections $capabilities `
        -Seed 'quality-bar'

    Add-OfficePowerPointPlanCaseStudy `
        -Title 'PowerPoint designer bridge' `
        -Sections $caseStudy `
        -Metrics $metrics `
        -Seed 'designer-case-study'
}

This is the important shift: the script describes intent. The designer layer handles visual composition.

Writing Slides Two Ways

The example uses two complementary writing modes:

• Semantic slides through New-OfficePowerPointDeckPlan and Add-OfficePowerPointDesignerDeck.
• Explicit evidence slides through PptSlide, PptChart, PptTable, and PptNotes.

That split matters. Narrative slides benefit from designer composition. Evidence slides often need precise chart, table, and notes placement.

Build The Deck Once

The showcase renders the semantic plan, adds evidence slides, creates sections, and applies transitions in one composition block. It does not save, reopen, and save the same deck for every step.

PptNew -Path $path {
    PptSlideSize -Preset Screen16x9

    PptDesignerDeck `
        -Plan $plan `
        -AccentColor '#008C95' `
        -Seed 'pswriteoffice-showcase' `
        -Purpose 'technical service brief' `
        -Name 'PSWriteOffice Showcase' `
        -FooterLeft 'PSWriteOffice' `
        -FooterRight 'OfficeIMO designer' `
        -CreativeDirectionPack TechnicalMap `
        -LayoutStrategy ContentFirst

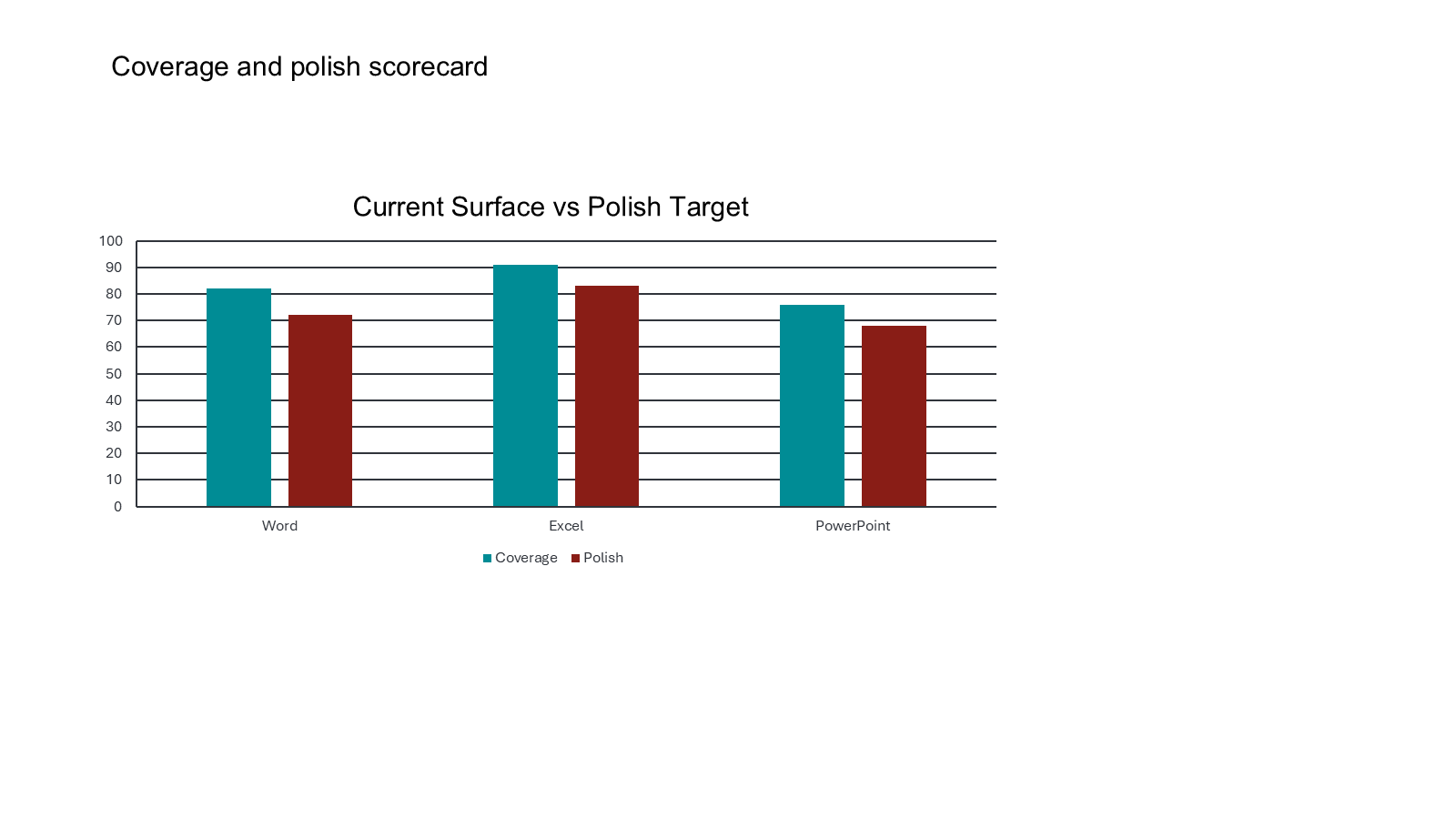

    $chartSlide = PptSlide -PassThru
    PptTitle -Slide $chartSlide -Title 'Coverage and polish scorecard'

    PptChart `
        -Slide $chartSlide `
        -Data $chartRows `
        -CategoryProperty Product `
        -SeriesProperty Coverage,Polish `
        -Type ClusteredColumn `
        -Title 'Current Surface vs Polish Target' `
        -X 58 `
        -Y 118 `
        -Width 610 `
        -Height 265

    PptNotes -Slide $chartSlide -Text 'Use this slide as the bridge between the designer slides and the concrete backlog.'

    $tableSlide = PptSlide -PassThru
    PptTitle -Slide $tableSlide -Title 'Immediate implementation path'

    PptTable `
        -Slide $tableSlide `
        -Data $tableRows `
        -X 64 `
        -Y 132 `
        -Width 590 `
        -Height 210

    PptNotes -Slide $tableSlide -Text 'Close with the next concrete pull request slices: visual screenshots, blog drafts, and richer wrappers.'

    PptSection -Name 'Designer story' -StartSlideIndex 0
    PptSection -Name 'Evidence appendix' -StartSlideIndex 6
    PptTransition -Slide $chartSlide -Transition PushLeft
    Get-OfficePowerPointSlide -Index 0 | PptTransition -Transition Fade
}

/>

The block uses the concise aliases consistently. The equivalent canonical names remain available in command help. The output is not a static export: it is a deck you can continue editing, presenting, importing into another deck, or using as a template.

Use A Presentation Object For Loop-Driven Decks

When normal PowerShell control flow decides which slides to add, keep the presentation object instead of wrapping everything in a DSL block:

$presentation = New-OfficePowerPoint -Path '.\Customer-Briefing.pptx' -NoSave
$slide = Add-OfficePowerPointSlide -Presentation $presentation -LayoutType Text -PassThru
Set-OfficePowerPointSlideTitle -Slide $slide -Title 'Actions'
Add-OfficePowerPointTextBox -Slide $slide -Text 'Confirm the production date.' -X 90 -Y 170 -Width 700 -Height 60
$presentation | Save-OfficePowerPoint
$presentation | Close-OfficePowerPoint

This is the same engine and the same document model. Choose the shape that makes the surrounding script easiest to read.

Reading And Validating The Deck

The showcase finishes by reading the generated deck back. That makes the example useful in CI and in demos because you can prove the deck is more than a file on disk.

$presentation = Get-OfficePowerPoint -Path $path
$summary = @(Get-OfficePowerPointSlideSummary -Presentation $presentation)
$presentation | Close-OfficePowerPoint

$summary |
    Select-Object SlideIndex, Title, ShapeCount, TextBoxCount, ChartCount, TableCount, HasNotes

You can turn the same read-back into assertions:

if (($summary | Where-Object ChartCount -gt 0).Count -lt 1) {
    throw 'Expected at least one chart slide.'
}

if (($summary | Where-Object HasNotes).Count -lt 2) {
    throw 'Expected speaker notes for presenter handoff.'
}

These checks verify slide structure. Open the generated deck in your target presentation application as well to check layout, fonts, transitions, and presenter notes before delivery.

Performance And Scale

PowerPoint generation performance is mostly about avoiding unnecessary layout work and repeated file opens.

• Build the deck plan in memory, then render once.
• Use semantic sections for narrative content instead of manually placing every shape.
• Use explicit chart/table slides only where the evidence needs it.
• Keep images and background assets sized reasonably before embedding.
• Add notes during generation instead of reopening slides later.
• Validate slide summaries instead of parsing every Open XML part in routine tests.

For a larger briefing pack, split the deck into cover, story, evidence, appendix, and handoff sections. That keeps the generated file understandable and keeps future automation easy to extend.

More Deck Ideas

The same pattern can produce:

• monthly service review decks with charts, owner actions, and speaker notes
• customer delivery packs with milestones, capabilities, case studies, and appendix tables
• security or compliance briefings with risk trends and remediation roadmaps
• project status decks generated from issue trackers or planning systems
• reusable consulting templates where data changes but the story structure stays stable

What This Enables

The combined surface supports both semantic design and precise evidence slides:

• fewer coordinates in PowerShell scripts
• repeatable slide composition
• semantic deck planning
• designer-generated visual structure
• mixed semantic and explicit evidence slides
• speaker notes and maintenance metadata

PowerShell can express the story of a deck, not just place shapes on a canvas. For maintenance workflows, the same module can inspect existing slides, copy approved slides between decks, update text and notes, organize sections, and export an HTML review surface.
